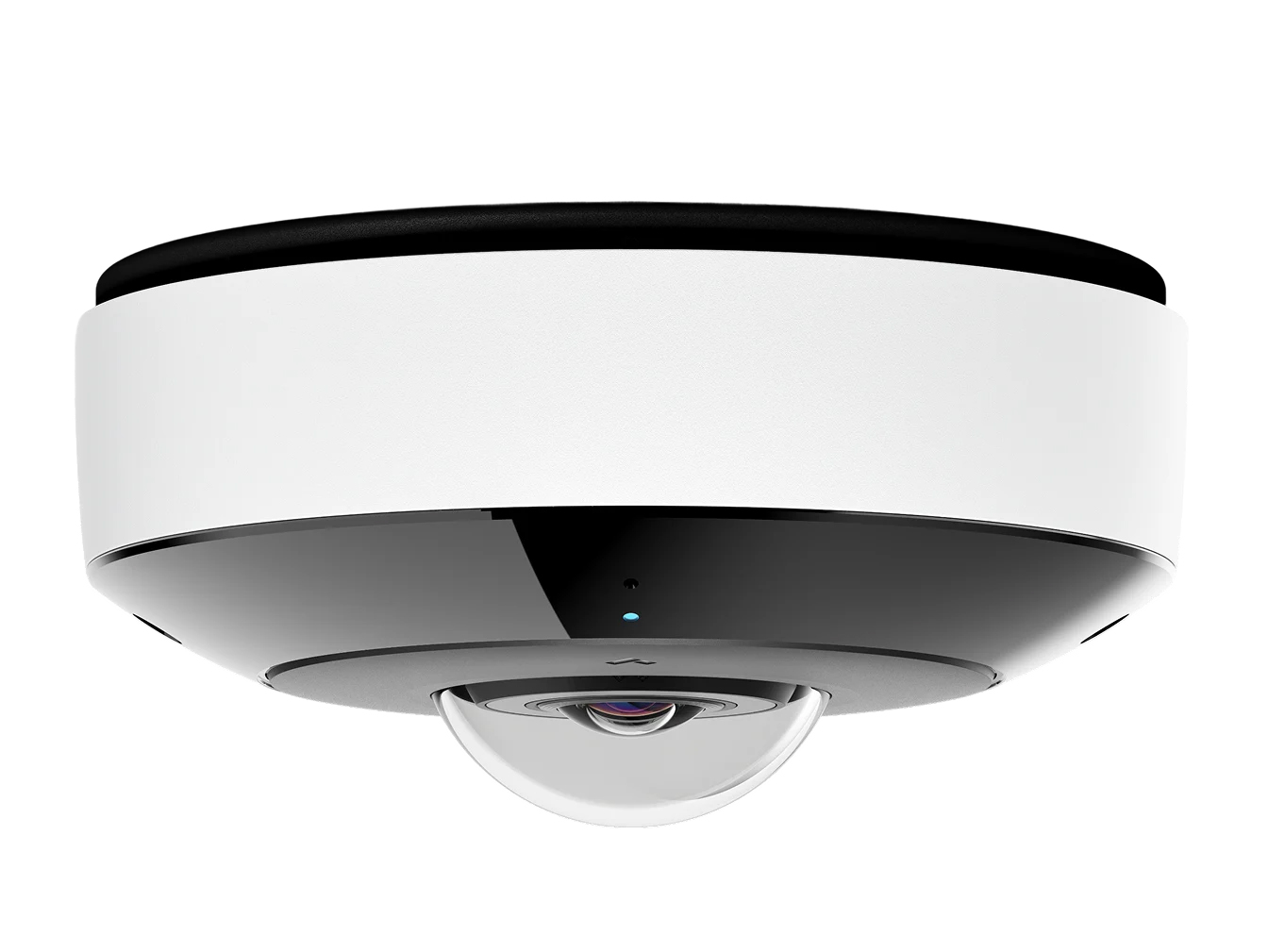

The Verkada CF81-E Fisheye Camera is designed for privacy-sensitive wide-area surveillance, delivering 12MP image quality and 180-degree coverage across large indoor and outdoor spaces. With a 1/2.3" progressive CMOS image sensor, fixed 1.18mm lens, 20m/66ft IR range, true WDR, and multiple viewing options including panoramic, ePTZ, and split views, the CF81-E helps reduce blind spots while supporting flexible monitoring. The onboard Ambarella CV22S88 processor enables AI-powered search, AI-powered alerts, people search, vehicle search, trajectory analysis, line crossing alerts, and Person of Interest detection. Built with IP67 weather protection, IK10 impact resistance, PoE/PoE+ support, and 512GB to 2TB onboard storage, this Verkada fisheye surveillance camera is ideal for retail spaces, sidewalks, long corridors, hallway intersections, campuses, transportation hubs, warehouses, and commercial facilities.
Key Features
- Expansive 180-degree fisheye coverage for monitoring large spaces from one camera location
- Clear 12MP resolution with a 1/2.3" progressive CMOS image sensor
- Multiple viewing modes including digital pan-tilt-zoom, panoramic, 2-way split, 3-way split, and 4-way split
- 20m/66ft IR range for nighttime viewing and low-light visibility
- Advanced analytics with AI-powered search, AI-powered alerts, people analytics, vehicle analytics, line crossing, and Person of Interest detection
- Rugged fisheye design with IP67 weather rating and IK10 impact rating
- Hybrid cloud architecture with onboard storage, reduced bandwidth consumption, redundant cloud backup, and unlimited cloud-based archiving
Specifications
- Model: CF81-E
- Camera Type: Outdoor Fisheye Camera
- Image Sensor: 1/2.3" Progressive CMOS
- Resolution: 12MP (4056 x 3040); resolution 3008 x 3008
- Lens Type: Fixed
- Focal Length: 1.18mm
- Aperture: F2.18
- Field of View: 180° horizontal, 180° vertical, 180° diagonal
- IR Range: 20m / 66ft
- Minimum Illumination: 0.009 lux @ F1.9 color; 0 lux with IR illuminators on
- Processor: Ambarella CV22S88
- Onboard Storage: 512GB to 2TB
- Maximum SQ Onboard Retention: 30 to 90 days
- Video Compression: H.265, H.264
- Frame Rate: 24fps
- WDR Technology: 120dB dynamic range, true WDR, dual exposure
- Audio: One-way audio with built-in microphone
- Power Input: IEEE 802.3af Type 1 PoE / IEEE 802.3at Type 2 PoE+
- Connectivity: RJ-45 network/PoE connection, 10/100 Mbps
- Weather Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -40°C to 50°C / -40°F to 122°F
- Dimensions: 155.0mm x 71.6mm with mount plate
- Weight: 1023g / 36.10oz
- Warranty: 10 years
| Color | White |
|---|---|
| ID Camera | Scanshell 800R |
